Description

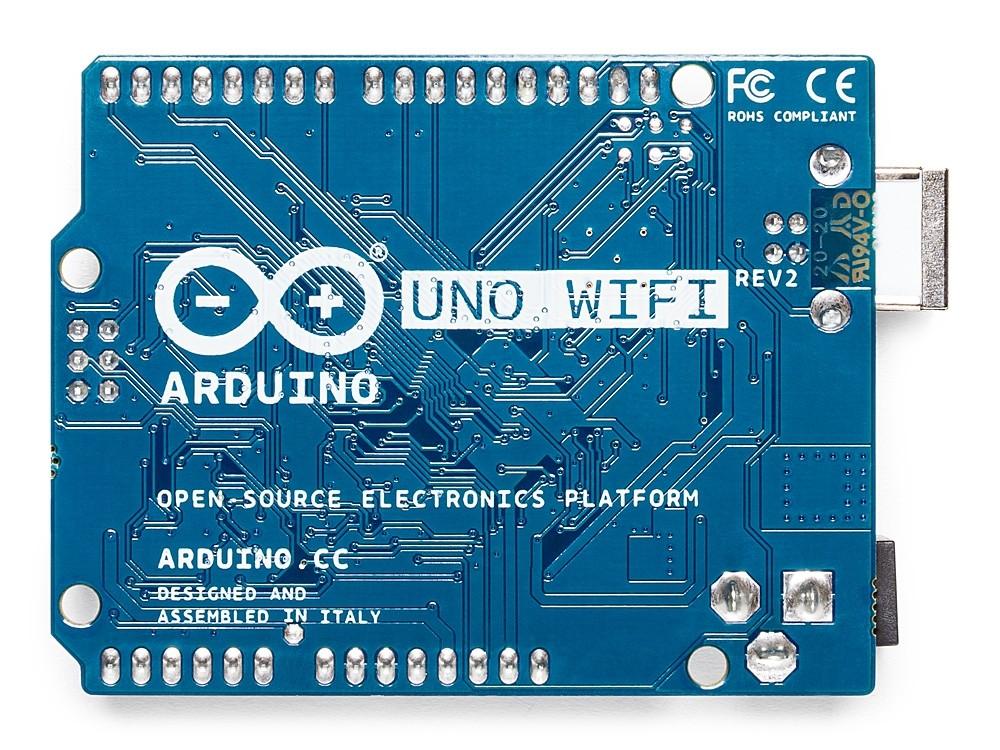

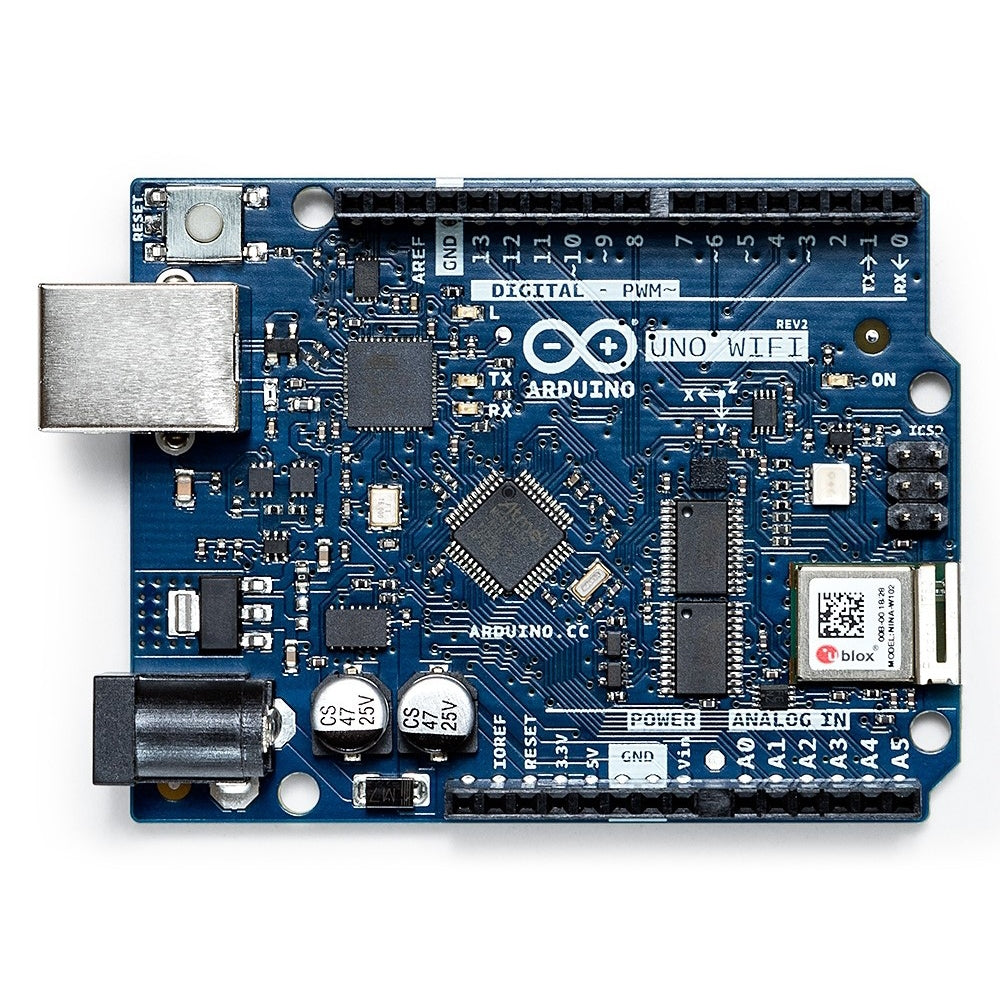

The Arduino UNO WIFI REV2 is basically the same as the Arduino Uno Rev3 but with the addition of WiFi and some other improvements. It incorporates a new 8-bit microprocessor from Microchip and has an integrated IMU (Inertial Measurement Unit).
The Wi-Fi Module is a stand-alone SoC with integrated TCP/IP protocol that can provide access to a Wi-Fi network or act as an access point.
The Arduino Uno WiFi has 14 digital input/output pins - 5 can be used as PWM outputs with Pin 11 which is not PWM as on the UNO Rev3 - 6 analog inputs, a USB connection, a power connector, an ICSP connector and a reset button. Contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable or power it with an AC adapter or battery to start using it.
FEATURES:
- Microcontroller: ATMEGA4809
- Operating voltage: 5V
- Input voltage (recommended): 7 to 12V
- Input voltage (limit): 6 to 12V
- Digital I/O pins: 14 - 5 Provide PWM output
- Digital PWM pins I/O: 5
- Analog input pins: 6
- DC current per I/O pin: 20 mA
- DC current per 3.3V pin: 50 mA
- Flash memory: 48 KB (ATMEGA4809)
- SRAM: 6.144B (ATMEGA4809 )
- EEPROM: 256 bytes (ATMEGA4809)
- Clock speed: 16 megahertz
- LED_BUILTIN: 25
- length: 68.6 mm
- Width: 53.4 mm
- Weight: 25 g
